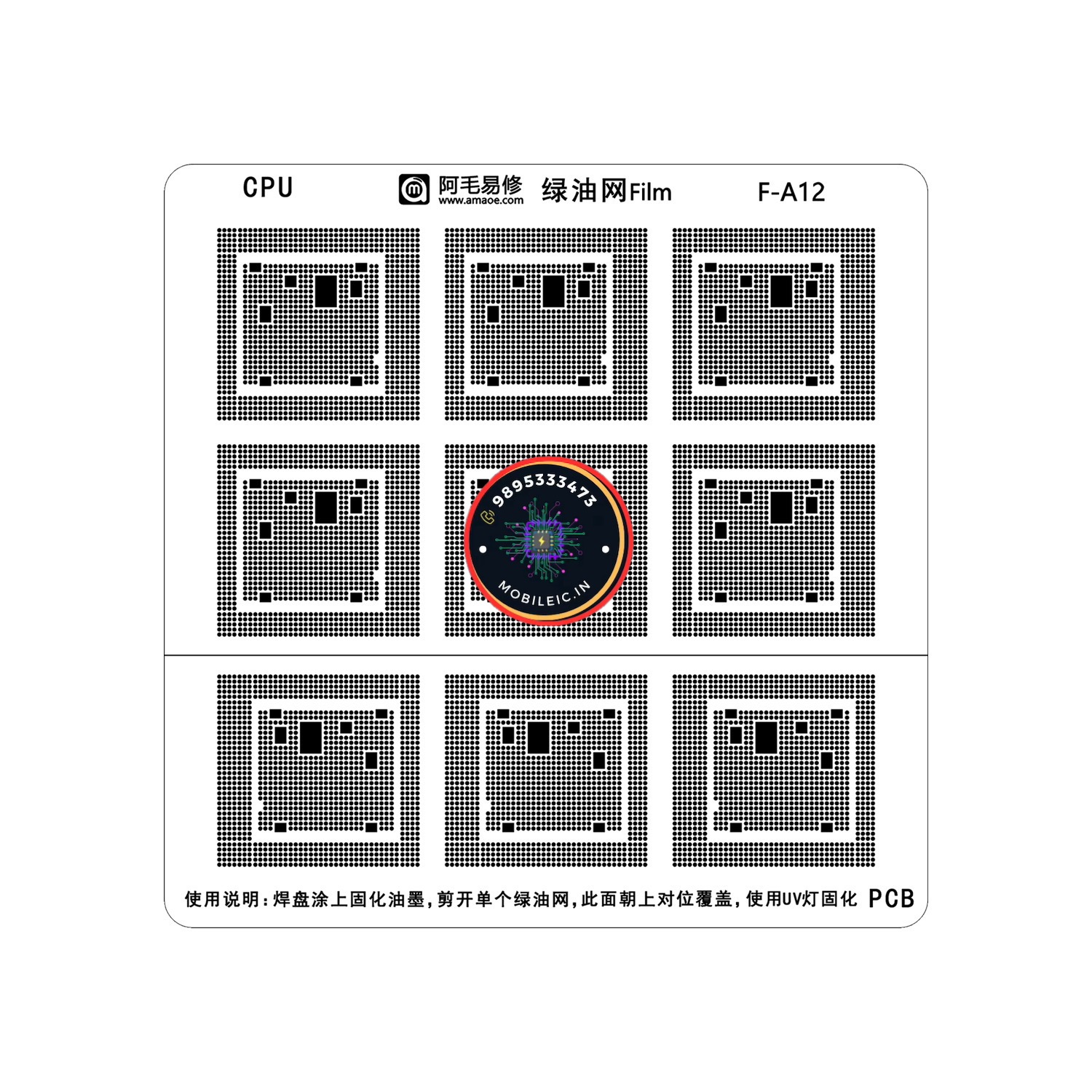

A12 CPU XS XR XS MAXX F-A12 CPU UV STENCIL GREEN OIL UV STENCIL FILM

BUY NOW

A12 CPU F-A12 CPU GREEN OIL FILM GREEN OIL REBALLING STENCIL FOR XS XR CPU

AMAOE A12 CPU F-A12 SOLDER MASK REPAIR GREEN OIL UV REBALLING STENCIL

BRAND COMPATIBILITY & MODEL COMPATIBILITY

ITEM MODEL SUPPORTING A12 CPU F-A12 CUP SUPPORT

Brand COMPATIBILITY Model COMPATIBILITY

IPHONE

IP-XS

IPHONE

IP-XR

The Apple A12 Bionic chip powers the following iPhones:

* iPhone XS

* iPhone XS Max

* iPhone XR

PACKAGE INCLUDES:
1 X STENCIL

WEIGHT: 0.02 KG

Specifications

Brand ‎amaoe

ITEM CODE/PRODUCT CODE: A12 CPU F-A12

WEIGHT:0.02KG

AMAOE SOLDER MASK REPAIR GREEN OIL UV STENCIL FOR MOBILE CPU IC CHIP PAINT PEELING MAINTENANCE BGA REBALLING PLASTIC MESH.

FEATURES:

SOLDER MASK REPAIR GREEN OIL UV STENCIL

EACH STENCIL IS PROOFREAD ACCORDING TO THE ORIGINAL FACTORY DRAWINGS TO

ENSURE THAT EVERY SOLDER JOINT MUST NOT BE MISSING, COMPLETELY CONSISTENT WITH PRECISE ALIGNMENT

HIGH PRECISION, NO BURRS, SO THAT EACH OF YOUR MESH HOLES CAN BE OF THE SAME SIZE AND NOT STUCK TIN BALLS

HOW TO USE:

AFTER CLEANING THE MOTHERBOARD OR CHIP PART, DRY IT WITH AN AIR GUN TO KEEP IT DRY

USE A BLADE TO APPLY AN APPROPRIATE AMOUNT OF CURING GREEN OIL PARALLEL TO THE CHIP OR MOTHERBOARD THAT NEEDS TO BE REPAIRED

PAY ATTENTION TO APPLYING THE GREEN OIL AS EVENLY AS POSSIBLE, THE THINNER THE COATING, THE BETTER, TRY NOT TO HAVE AIR BUBBLES WHEN LAMINATING

THEN PUT THE GREEN OIL STENCIL (THE PRINTED SIDE) DOWN AGAINST THE PADS, AND THE PADS ON THE GREEN OIL NET ARE ALIGNED WITH THE PADS ON THE CHIP OR THE MOTHERBOARD.

ACCORDING TO THE THICKNESS OF THE APPLIED GREEN OIL, IT IS CURED BY THE PURPLE LIGHT EMITTED BY THE PURPLE LIGHT LAMP FOR 6-15 SECONDS

CLEAN THE PAD PART WITH PCB WATER OR ALCOHOL, AND THEN CONTINUE TO USE THE CURING LAMP TO CURE IT FIRMLY, THAT IS, COMPLETE THE QUICK REPAIR OF THE CHIP OR MOTHERBOARD PAINT DROP
